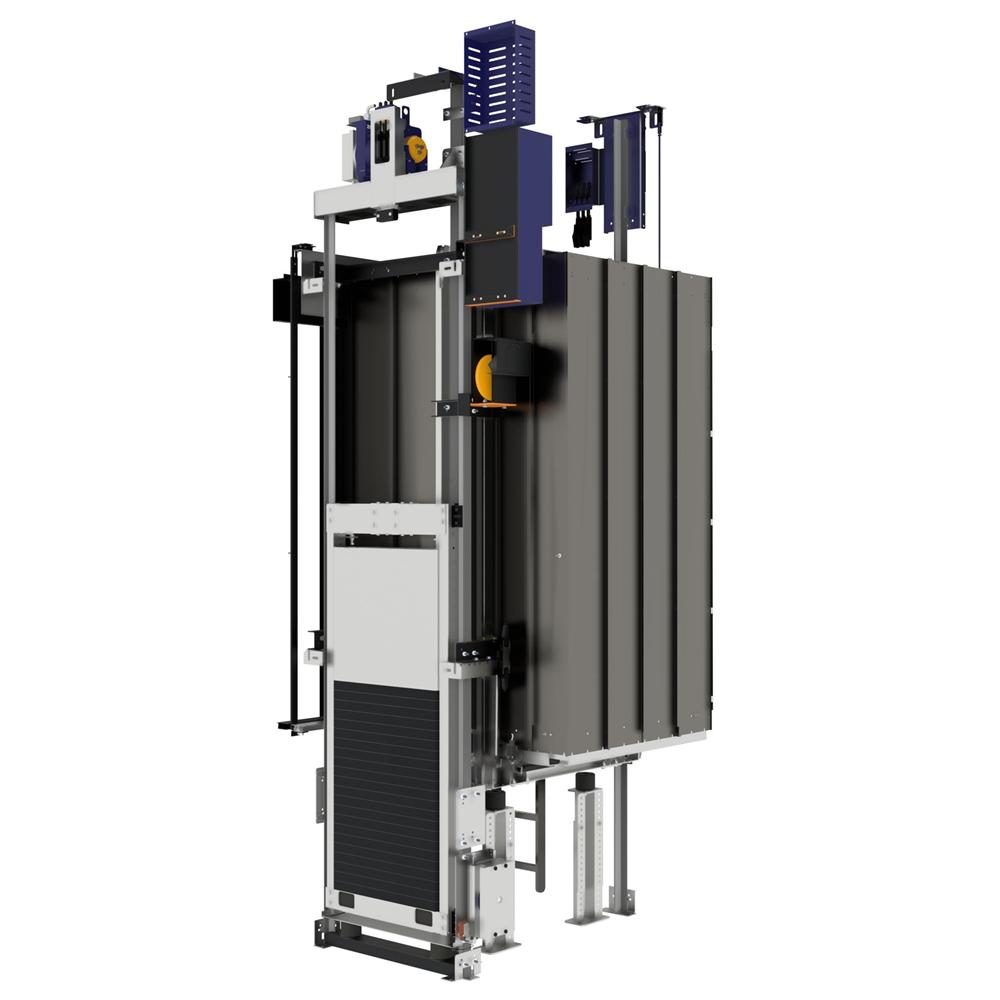

The bLift

The bLift is a 2:1 suspended, centrally guided machine-roomless passenger elevator with a frequency-controlled, gearless drive, specially developed for multi-story residential buildings. It can be equipped with two different drive sizes, combining high ride comfort with state-of-the-art energy-efficient drive technology.

The bLift is available with a car width of 1,100 mm and car depths of 1,400 mm or 2,100 mm, in the two common standardized car layouts for wheelchairs and stretchers, with load capacities of 630 kg and 1,000 kg, and speeds of 1.0 m/s and 1.6 m/s.

Depending on load capacity, speed, and car equipment, pit depths can optionally be reduced to 400 mm and headroom can be minimized to 2,400 mm.

The bLift is equipped with coated steel ropes. The centrally guided traction frame is also available with solid steel ropes in the sLift product variant. The maximum travel height is 45 m.

The bLift serves as a more cost-effective alternative to the zLift, primarily using the same high-quality components but with a limited range of variants.

Technical Data Overview


Standard
Load capacities from 630 kg to 1,000 kg
Travel heights up to 45 m with 2 to 19 stops
Speeds 1.0 m/s
Door types center or side opening
Pit depths from 1,050 mm
Headroom from 2,500 mm (optional)
Drive gearless, frequency-controlled (in the shaft head)
Control system ELEVCO plug-and-play control system technology mounted in a separate control cabinet (200 × 150 × 2,200 mm) in the uppermost landing material finish prime
Functions • Intercom between cabin and control cabinet
• Emergency rescue with indication of speed, direction of travel and door zone
Regulations EN 81-20, EN 81-50, EN 81-58, ARL 2014/33/EG
Options
Functions
  • through-car arrangement
  • Receptionist intercom
  • Intercom between cabin and control cabinet
  • automatic evacuation to the next floor, with door-opening facility (via separate UPS)
  • control cabinet up to 30m from the top landing FFL
  • Group control for up to two units
  • Car fan optionally with button in the control panel or automatically during travel
Regulations EN 81-70, EN 81-71, EN 81-73, GOSTP53780-2010


Product Specifications


bLift
Load capacities (Q) kg Q = 630 630 < Q ≤ 1,000
Suspension   2:1
Speeds m/s 1.0
Maximum travel heights m 45
Suspension rope diameter mm 6.5
Car
Car widths (CW) mm 1,100
Car depths (CD) mm 1,400 2,100
Car heights (CH) mm 2,100 – 2,200
Doors
Door widths mm 700 – 1,000
Door heights mm 2,000 – 2,100
Door types   T2 / C2
Through-loading   optional
Shaft
Shaft widths mm CW + 500
Shaft depths door type T2 and C4 mm CD + 325
Shaft depths door type T2 and C4 with through-loading mm CD + 530
Shaft depths door type C2 mm CD + 255
Shaft depths door type C2 with through-loading mm CD + 390
Pit depths (Standard) mm min. 1,050
Headroom (Standard) mm min. 2,500 (CH + 1,200)

The respective car height describes the dimension to the structural ceiling. Suspended ceilings must be deducted from this and reduce the clear dimension accordingly.
T = Telescopic door (left or right opening), C = Center opening door, 2/4 = Number of panels
Some combinations are not possible.
